Fin Type Selection
L, LL, KL, G, extruded and welded fin designs for different temperature duties.
Metnick Alloys Private Limited

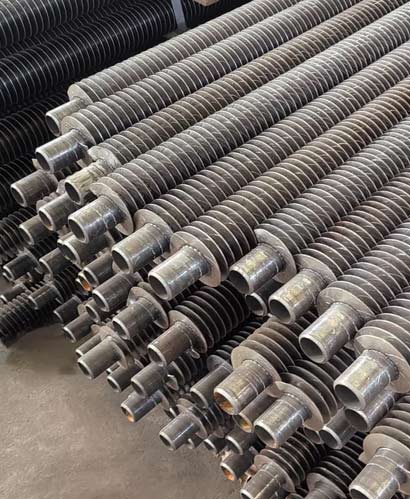

Fin Tube
Fin tubes for heat exchangers, air coolers, condensers, boilers and process equipment where higher surface area improves thermal performance.
Product RangeOverview
Industrial Supply
Fin tubes increase external surface area and improve heat transfer between tube-side fluid and air or gas flow. They are commonly used in air cooled heat exchangers, economizers, dryers, boilers, condensers and process heating or cooling equipment.
Metnick Alloys supports L, LL, KL, G, extruded, welded and embedded fin tube requirements in carbon steel, stainless steel, nickel alloy, titanium, duplex and copper alloy combinations. Tubes can be supplied straight, U-bent, cut to length or prepared for tube sheet assembly.
High area transfersupply range
MTCdocuments
TPIinspection
Exportpacking
Types & Options
What We Supply
Material Pairing
Base tube and fin material selected for corrosion, temperature and thermal performance.
Inspection Package
Hydro, eddy current, PMI, dimensional and visual inspection support available.
Technical Snapshot
WhatsApp
RFQ
Specifications & Size Chart
| Tube OD | 12.7 mm to 63.5 mm |
| Fin Height | 8 mm to 32 mm |
| Fin Thickness | 0.3 mm to 1.2 mm |
| Fin Pitch | 3 to 11 fins per inch |
| Tube Length | Up to 24 meter |
| Material | CS, SS, nickel alloy, titanium, duplex, copper alloy |
Size Chart
| Tube OD | Fin Height | Fin Type | Tube Length | Common Service |
|---|---|---|---|---|
| 12.7 mm | 8-12 mm | L / LL | Up to 12 m | Compact exchangers |
| 19.05 mm | 10-16 mm | L / KL / G | Up to 18 m | Air coolers |
| 25.4 mm | 12-20 mm | G / extruded | Up to 24 m | Heat exchangers |
| 31.75 mm | 16-25 mm | Extruded / welded | Up to 24 m | Process coolers |
| 38.1 mm | 20-32 mm | Welded | As required | Boiler / heater |
| 50.8 mm+ | Custom | Welded / embedded | As required | Heavy duty |
Need this product in a custom size?
Send grade, product, size, quantity, standard, certificates and delivery location for a faster response.
Performance
Mechanical & Service Properties
Applications
- Air cooled heat exchangers
- Condensers and evaporators
- Boiler economizers
- Dryers and process heaters
- Power plant heat transfer
- Chemical and refinery equipment
Property Guide
Heat Transfer Area
High
Temperature Duty
Material based
Mechanical Bond
Fin type based
Corrosion Resistance
Grade based
Supply Flow
From Requirement To Dispatch
Duty Review
Confirm tube material, fin type, OD, pitch and length.
Manufacturing
Finning, straightening, cutting and end preparation.
Inspection
Dimensional, visual, hydro or eddy current checks.
Dispatch
Bundled packing, end protection and documents.
